CH4037, CH4036 - Power Transistors

RCA

📥 Download Datasheet

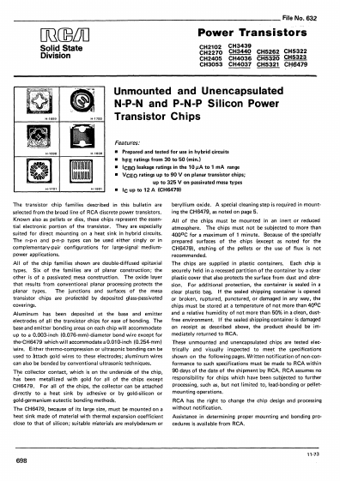

CH4037 Datasheet Preview — This datasheet PDF includes multiple part numbers: CH4037, CH4036. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CH4037, CH4036
Manufacturer	RCA
File Size	343.18 KB
Description	Power Transistors
Datasheet	CH4036-RCA.pdf
Note	This datasheet PDF includes multiple part numbers: CH4037, CH4036. Please refer to the document for exact specifications by model.

CH4037 Product details

Features

Prepared and tested for use in hybrid qircuits.
hFE ratings from 30 to 50 (min. ).
ICBO leakage ratings in the 10 IlA to 1 mA range.
VCEO ratings up to 90 V on planar transistor chips; up to 325 V on passivated mesa ty pes H-1B01.
IC up to 12 A (CH6479) The transistor chip families described in this bulletin are selected from the broad line of RCA discrete power transistors. Known also as pellets or dies. these chips represent the essen.
