S3706E, S3705M Thyristors / Rectifiers

S3706E Description

File No.839 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ OOCD3LJD Solid State Division Thyristors/Rectifiers.S3705M D2600M S3706E .

S3706E Features

* Ability to handle high beam current; average 1.6 mA dc
* Ability to supply as much as 5 mJ of stored energy to the deflection yoke, which is sufficient for 29-mm-neck and 36.5-mm-neck picture tubes operated at 29 kV Inominal value)
* Highly reliable circuit which can

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S3706E, S3705M. Please refer to the document for exact specifications by model.

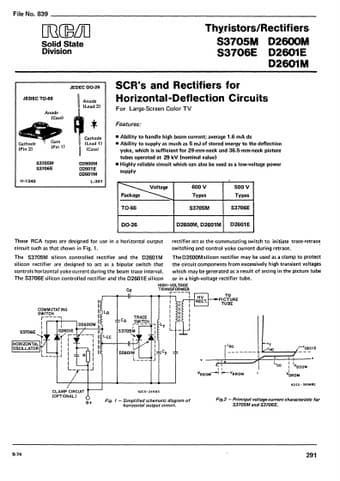

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S3706E, S3705M
Manufacturer
RCA
File Size
360.68 KB
Datasheet
S3705M-RCA.pdf
Description
Thyristors / Rectifiers
Note
This datasheet PDF includes multiple part numbers: S3706E, S3705M.
Please refer to the document for exact specifications by model.
