RFM-0505S

DC/DC Converter

RFM-0505S Features

* Unregulated Converters

* Low cost 1W converter

* Industry standard pinout

* bS1ukIlPlVe4Dt pCpaoicisnkotalsagt(eiPornoductmanager)

* Efficiency up to 79%

* Wide operating temperature range -40°C to +85°C

* UL60950-1, CAN/CSA

RFM-0505S General Description

The RFM DC/DC converter is typically used in cost sensitive general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1kVDC isolation, industrial operating temperature range of -40°C to +85°C without derating and UL/ EN certificat.

RFM-0505S Datasheet (906.72 KB)

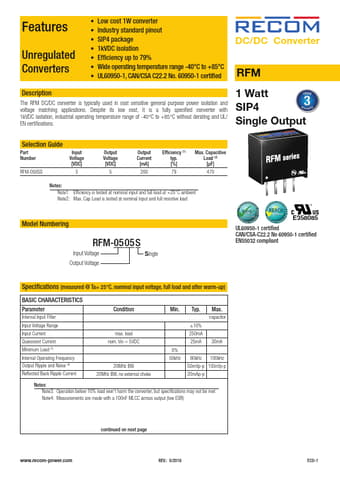

Preview of RFM-0505S PDF

Datasheet Details

Part number:

RFM-0505S

Manufacturer:

RECOM

File Size:

906.72 KB

Description:

Dc/dc converter.
