RW2-xxx Datasheet - RECOM

RW2-xxx 2 Watt DIP16 & SMD Single & Dual Output

RW2 Series 2:1 ±2% typ. ±0.5% max. (20% to 100% full load) ±0.5% typ. 50mVp-p max. 100kHz min. (tested for 1 second) H2 H3 (long term isolation) 70% min. / 80% typ. 1000VDC min. 2000VDC min. 3000VDC min. see Application Notes 30pF max. 1GΩ min. Continuous *40°C to +85°C *55°C to +12.

RW2-xxx Features

* Regulated Converters

* 2:1 Wide Range Voltage Input 1kVDC, 2kVDC and 3kVDC Isolation UL94V-0 Package Material Continuous Short Circuit Protection Low Ripple and Noise DIP16 and SMD Versions Available Efficiency to 83% ECONOLINE DC/DC-Converter RW2 Series C

RW2-xxx Datasheet (128.47 KB)

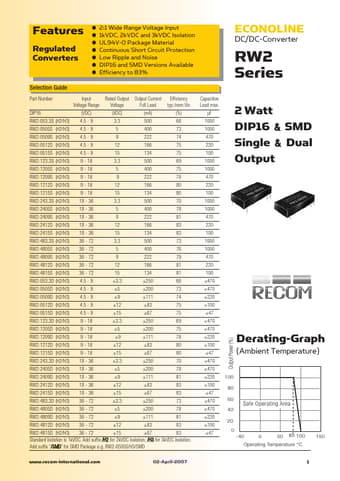

RW2-xxx Datasheet Preview — Preview of RW2-xxx PDF

Datasheet Details

Part number:

RW2-xxx

Manufacturer:

RECOM

File Size:

128.47 KB

Description:

2 watt dip16 & smd single & dual output.
