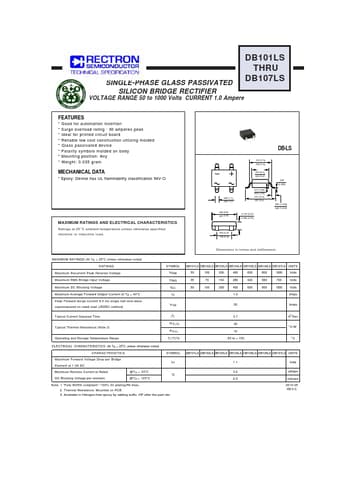

DB102LS
FEATURES
- Good for automation insertion
- Surge overload rating
- 30 amperes peak
- Ideal for printed circuit board
- Reliable low cost construction utilizing molded
- Glass passivated device
- Polarity symbols molded on body
- Mounting position: Any
- Weight: 0.335 gram
MECHANICAL DATA
- Epoxy: Device has UL flammability classification 94V-O
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. resistive or inductive load.
DB-LS
.310 (7.9) .290 (7.4)
.255 (6.5) .245 (6.2)
.042 (1.1) .038 (1.0)
.013 (.330) .003 (.076) .410 (10.4) .360 (9.4)
.346 (8.8) .307 (7.8)
0.100 (2.55) 0.089 (2.25)
.009 (0.229)
.060 (1.524) .040 (1.016)
.205 (5.2) .195 (5.0)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS (At TA = 25o C unless otherwise noted) RATINGS
Maximum Recurrent Peak Reverse Voltage Maximum RMS Bridge Input Voltage Maximum DC Blocking Voltage Maximum Average Forward Output Current at TA = 40o C Peak Forward Surge...
