DB103LS, DB101LS - SILICON BRIDGE RECTIFIER

DB103LS Description

DB101LS THRU SINGLE-PHASE GLASS PASSIVATED DB107LS SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere .
Part No. code: (Y:Last digit of year& A:2010,B:2011……) Week. code: (WW:01~52) Rectron Logo Voltage.

DB103LS Features

* Good for automation insertion
* Surge overload rating - 30 amperes peak
* Ideal for printed circuit board
* Reliable low cost construction utilizing molded
* Glass passivated device
* Polarity symbols molded on body
* Mounting position: Any
* Weight: 0.335 gram MECH

DB103LS Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining o

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB103LS, DB101LS. Please refer to the document for exact specifications by model.

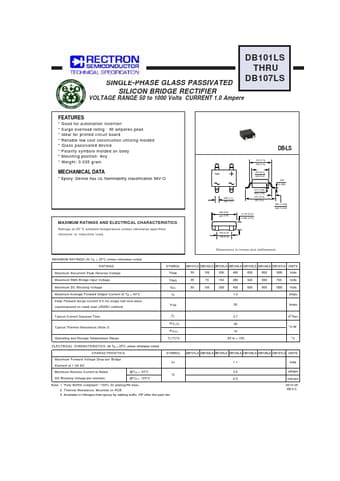

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DB103LS, DB101LS
Manufacturer
RECTRON
File Size
159.52 KB
Datasheet
DB101LS-RECTRON.pdf
Description
SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DB103LS, DB101LS.
Please refer to the document for exact specifications by model.
