DB107LS - SILICON BRIDGE RECTIFIER

Product Overview

RECTRON

Datasheet Details

Part number	DB107LS
Manufacturer	RECTRON
File Size	159.52 KB
Description	SILICON BRIDGE RECTIFIER

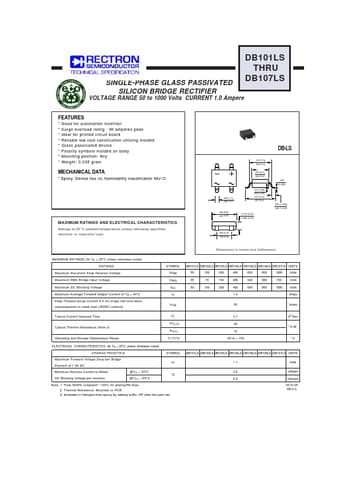

Datasheet	DB107LS Datasheet
Note	This datasheet PDF includes multiple part numbers: DB107LS, DB101LS. Please refer to the document for exact specifications by model.
Additional preview pages of the DB107LS datasheet.

Product details

Description

Part No. code: (Y:Last digit of year& A:2010,B:2011……) Week code: (WW:01~52) Rectron Logo Voltage-code 1-------50V 5-------600V 2-------100V 6-------800V 3-------200V 7-----1000V 4-------400V PACKAGING OF DIODE AND BRIDGE RECTIFIERS TUBE PACK PACKAGE DB-LS PACKING CODE -C EA PER BOX 4,000 INNER BOX SIZE (mm) 450 140 84 CARTON SIZE (mm) 464 305 283 EA PER CARTON 24,000 WEIGHT(Kg) 16.45 DISCLAIMER NOTICE Rectron Inc rese

Features

Good for automation insertion.
Surge overload rating - 30 amperes peak.
Ideal for printed circuit board.
Reliable low cost construction utilizing molded.
Glass passivated device.
Polarity symbols molded on body.
Mounting position: Any.
Weight: 0.335 gram.
