HER304G - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER

This page provides the datasheet information for the HER304G, a member of the HER301G HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER family.

Datasheet Summary

Features

  • Glass passivated junction.
  • Low power loss, high efficiency.
  • Low leakage.
  • Low forward voltage drop.
  • High current capability.
  • High speed switching.
  • High reliability.
  • High current surge.

📥 Download Datasheet

Datasheet preview – HER304G

Datasheet Details

Part number HER304G
Manufacturer RECTRON
File Size 30.38 KB
Description HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
Datasheet download datasheet HER304G Datasheet
Additional preview pages of the HER304G datasheet.

📁 Similar Datasheet

  • HER304G - 3.0 AMPS. GLASS PASSIVATED HIGH EFFICIENCY RECTIFIERS (Jinan Gude Electronic Device)
  • HER304G - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER (GOOD-ARK Electronics)
  • HER304G - 3.0A Leaded Type High Effciency Rectifiers (American First Semiconductor)
  • HER304G - 3.0 AMP GLASS PASSIVATED HIGH EFFICIENCY RECTIFIERS (UNIOHM)
  • HER304G - Glass Passivated Junction High Efficiency Rectifiers (LRC)
  • HER304G - GLASS PASSIVATED RECTIFIER (GALAXY ELECTRICAL)
  • HER304G - Glass Passivated High Efficient Rectifiers (Taiwan Semiconductor)
  • HER304G - Glass Passivated High Efficient Rectifiers (LGE)
  • HER304G - Glass Passivated High Efficient Rectifiers (MCC)
  • HER304G - Glass Passivated High Efficiency Rectifiers (SeCoS)
Other Datasheets by RECTRON
  • HER301G - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
  • HER302G - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
  • HER303G - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
  • HER305G - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
  • HER305PG - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
  • HER306G - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
  • HER307G - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
  • HER308G - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER

Full PDF Text Transcription

Click to expand full text

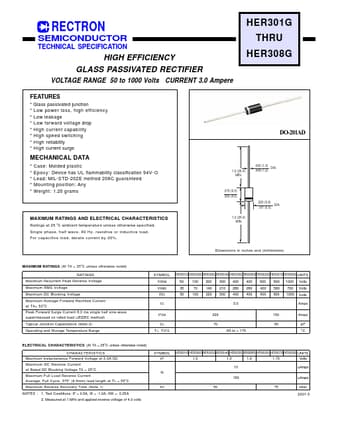

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Ampere HER301G THRU HER308G FEATURES * Glass passivated junction * Low power loss, high efficiency * Low leakage * Low forward voltage drop * High current capability * High speed switching * High reliability * High current surge MECHANICAL DATA * Case: Molded plastic * Epoxy: Device has UL flammability classification 94V-O * Lead: MIL-STD-202E method 208C guaranteed * Mounting position: Any * Weight: 1.20 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. DO-201AD 1.0 (25.4) MIN. .
