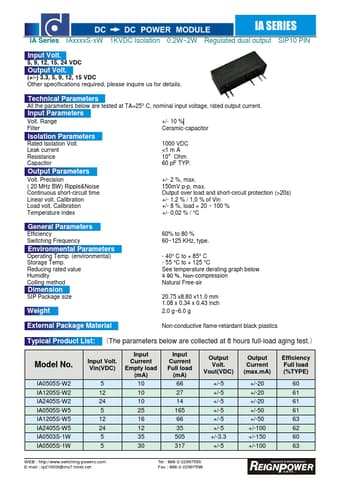

IA1212S-2W Datasheet - REIGNPOWER

IA1212S-2W DC-DC POWER MODULES

IA Series IAxxxxS-xW 1KVDC Isolation 0.2W~2W Regulated dual output SIP10 PIN Input Volt. 5, 9, 12, 15, 24 VDC Output Volt. (+/-) 3.3, 5, 9, 12, 15 VDC Other specifications required, please inquire us for details. Technical Parameters All the parameters below are tested at TA=25° C, nominal input voltage, rated output current. Input Parameters Volt. Range Filter +/- 10 % Ceramic-capacitor Isolation Parameters Rated Isolation Volt. Leak current Resistance Capacitor 1000 VDC <1 m A 109 Ohm 60.

IA1212S-2W Datasheet (210.43 KB)
