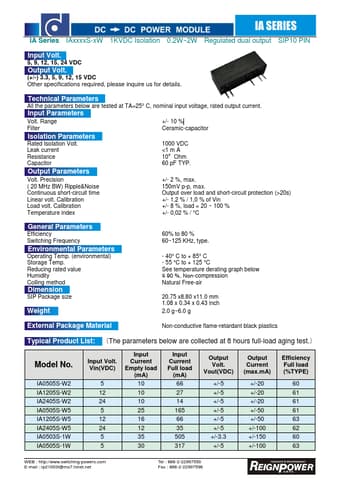

IA2403S-1W - DC-DC POWER MODULES
IA Series IAxxxxS-xW 1KVDC Isolation 0.2W~2W Regulated dual output SIP10 PIN Input Volt.
5, 9, 12, 15, 24 VDC Output Volt.
(+/-) 3.3, 5, 9, 12, 15 VDC Other specifications required, please inquire us for details.
Technical Parameters All the parameters below are tested at TA=25° C, nominal input voltage, rated output current.
Input Parameters Volt.
Range Filter +/- 10 % Ceramic-capacitor Isolation Parameters Rated Isolation Volt.
Leak current Resistance Capacitor 1000 VDC <1 m A 109 Ohm 60
