MSS21Axxx - DIP 14 Series Reed Relays

Product Overview

📥 Download Datasheet

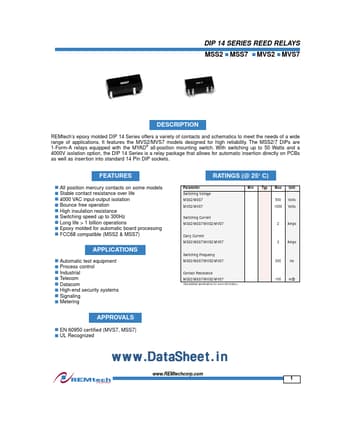

MSS21Axxx DIP 14 Series Reed Relays by REMtech - Datasheet Preview — Datasheet preview – MSS21Axxx

Datasheet Details

Part number	MSS21Axxx
Manufacturer	REMtech
File Size	60.20 KB
Description	DIP 14 Series Reed Relays
Datasheet	MSS21Axxx Datasheet
Additional preview pages of the MSS21Axxx datasheet.

Product details

Description

REMtech’s epoxy molded DIP 14 Series offers a variety of contacts and schematics to meet the needs of a wide range of applications.

Features

the MVS2/MVS7 models designed for high reliability. The MSS2/7 DIPs are 1-Form-A relays equipped with the MYAD® all-position mounting switch. With switching up to 50 Watts and a 4000V isolation option, the DIP 14 Series is a relay package that allows for automatic insertion directly on PCBs as well as insertion into standard 14 Pin DIP sockets.
