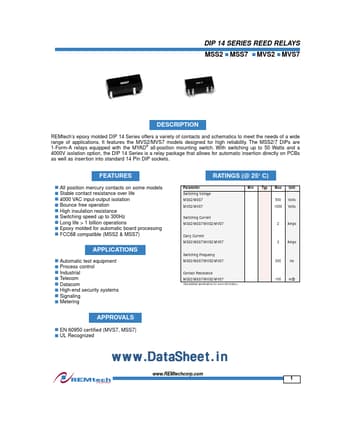

MSS71Axxx
DESCRIPTION
REMtech’s epoxy molded DIP 14 Series offers a variety of contacts and schematics to meet the needs of a wide range of applications. It features the MVS2/MVS7 models designed for high reliability. The MSS2/7 DIPs are 1-Form-A relays equipped with the MYAD® all-position mounting switch. With switching up to 50 Watts and a 4000V isolation option, the DIP 14 Series is a relay package that allows for automatic insertion directly on PCBs as well as insertion into standard 14 Pin DIP sockets.
FEATURES s s s s s s s s s
RATINGS (@ 25o C)
Parameter Switching Voltage MSS2/MSS7 MVS2/MVS7 Switching Current MSS2/MSS7/MVS2/MVS7 Carry Current MSS2/MSS7/MVS2/MVS7 3 Amps 2 Amps 500 1000 Volts Volts Min Typ Max Unit
All position mercury contacts on some models Stable contact resistance over life 4000 VAC input-output isolation Bounce free operation High insulation resistance Switching speed up to 300Hz Long life > 1 billion operations Epoxy molded for automatic board processing FCC68...
