RF3024 - Broadband Medium Power SPDT Switch

General Description

The RF3024 is a single-pole double-throw (SPDT) switch designed for general purpose switching applications which require very low insertion loss, moderate isolation, and medium power handling capability.

It is also well suited for battery powered applications with low control voltages.

Key Features

  • 10 MHz to 3 GHz Operation 0.25 dB Insertion Loss at 1 GHz 27 dB Isolation at 2 GHz 2.5 V Minimum Control Voltage 30 dBm P0.1 dB at 3 V 50 dBm IP3 at 3 V Cellular Handset.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RF302LAM2STF Super Fast Recovery Diode ROHM
RF300 DPDT Non-Latching Electromechanical Relay Teledyne
RF3000 C-Band LNA Paradise Datacom
RF3000 Spread Spectrum Baseband Modem Micro Devices
RF3002A SCHWIMMERSCHALTER HORIZ ETC

Other Datasheets by RF Micro Devices (now Qorvo)

Part Number Description
RF3021 REFLECTIVE SWITCH
RF3023 (RF3023 / RF3024) Broadband Medium Power SPDT Switch
RF3025 SPDT / ABSORPTIVE SWITCH
RF3100-2 3V 900MHZ LINEAR AMPLIFIER MODULE
RF3100-3 3V 1900MHZ LINEAR AMPLIFIER MODULE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

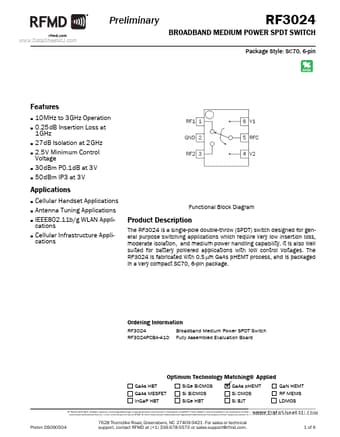

Preliminary www.DataSheet4U.com RF3024 BROADBAND MEDIUM POWER SPDT SWITCH Package Style: SC70, 6-pin Features „ „ „ „ „ „ 10 MHz to 3 GHz Operation 0.25 dB Insertion Loss at 1 GHz 27 dB Isolation at 2 GHz 2.5 V Minimum Control Voltage 30 dBm P0.1 dB at 3 V 50 dBm IP3 at 3 V Cellular Handset Applications Antenna Tuning Applications IEEE802.11b/g WLAN Applications Cellular Infrastructure Applications Applications „ „ „ Functional Block Diagram Product Description The RF3024 is a single-pole double-throw (SPDT) switch designed for general purpose switching applications which require very low insertion loss, moderate isolation, and medium power handling capability. It is also well suited for battery powered applications with low control voltages. The RF3024 is fabricated with 0.
