RF9678PCBA

W-CDMA TRANSMIT MODULATOR AND IF AGC

RF9678PCBA Features

* Digitally Controlled Power Down Modes

* 2.7V to 3.3V Operation

* Digital LO Quadrature Divider

* AGC Linearity/Current Consumption Var.

* IF AGC Amp with 55dB Gain Control AGC DEC 14 16 VGC 1 VCC2 2 MOD+ 3 MOD- 4 5 I SIG+ 15 13 12 NC 11 BG OUT Gain Cont

RF9678PCBA General Description

The RF9678 is an integrated complete quadrature modulator and IF AGC amplifier designed for the transmit section of W-CDMA applications. It is designed to modulate baseband I and Q signals, and amplify the resulting IF signals while providing 55dB of gain control range. This circuit is designed as p.

RF9678PCBA Datasheet (200.60 KB)

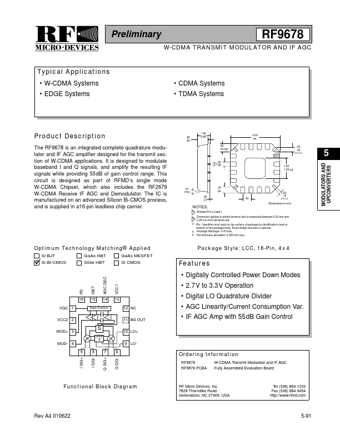

Preview of RF9678PCBA PDF

Datasheet Details

Part number:

RF9678PCBA

Manufacturer:

RF Micro Devices

File Size:

200.60 KB

Description:

W-cdma transmit modulator and if agc.
Preliminary RF9678 W-CDMA TRANSMIT MODULATOR AND IF AGC 5 Typical Applications

* W-CDMA Systems

* EDGE Systems

* CDMA Syste.
