RX5000 Datasheet - RF Monolithics Inc

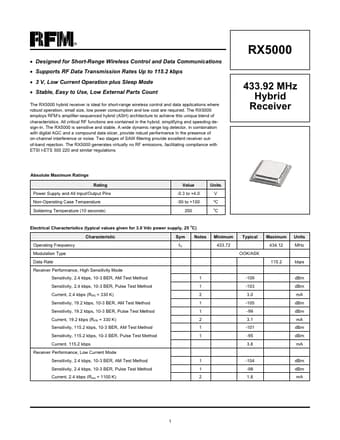

RX5000, 433.92 MHz Hybrid Receiver

® * Designed for Short-Range Wireless Control and Data Communications * Supports RF Data Transmission Rates Up to 115.2 kbps * 3 V, Low C.

datasheet Preview Page 1 from Datasheet4u.com

RX5000_RFMonolithicsInc.pdf

RX5000 Datasheet Preview — Preview of RX5000 PDF

Datasheet Details

Part number:

RX5000

Manufacturer:

RF Monolithics Inc

File Size:

103.56 KB

Description:

433.92 MHz Hybrid Receiver

Features

* virtually no RF emissions, making it easy to certify to short-range (unlicensed) radio regulations. Amplifier-Sequenced Receiver Operation The ASH receiver’s unique feature set is made possible by its system architecture. The heart of the receiver is the amplifiersequenced receiver section, which pr

Applications

* where robust operation, small size, low power consumption and low cost are required. The RX5000 employs RFM’s amplifier-sequenced hybrid (ASH) architecture to achieve this unique blend of characteristics. All critical RF functions are contained in the hybrid, simplifying and speeding design-in. The
