1N5913B ZENER DIODE

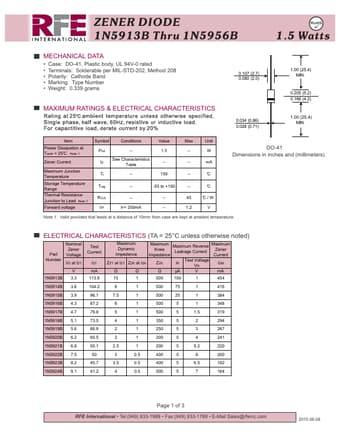

ZENER DIODE 1N5913B Thru 1N5956B RoHS 1.5 Watts MECHANICAL DATA Case: DO-41, Plastic body, UL 94V-0 rated Terminals: Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Marking: Type Number Weight: 0.339 grams MAXIMUM RATINGS & ELECTRICAL CHARACTERISTICS 0.107 (2.7) 0.080 (2.0) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.205 (5.2) 0.166 (4.2) 1.00 (25.4) MIN. Item Symbol Conditions Value Max Unit Power Dissipation at Tamb = 2.
