DL4001G Datasheet - RFE

DL4001G Surface MOUNT: General Purpose / Fast Recovery / Super Fast Recovery

SURFACE MOUNT: General Purpose, Fast Recovery, & Super Fast Recovery GENERAL PURPOSE RECTIFIER RFE CrossMax.Average Peak Peak Fwd Surge Max Forward Max. Reverse Part Number Reference Rect. Current Inverse Current @ 8.3ms Voltage @ Ta 25°C Current @ 25°C Voltage Superimposed @ Rated PIV @ Rated PIV IO(A) PIV(V) IFSM(A) VFM(V) IR(mA) LL4001G DL4001G 1.0 A 50 30 1.10 5 LL4002G DL4002G 1.0 A 100 30 1.10 5 LL4003G DL4003G 1.0 A 200 30 1.10 5 LL4004G DL4004G 1.0 A 400 30 1.10 5 LL4005G DL4005G 1.0 A 6.

DL4001G Datasheet (144.87 KB)

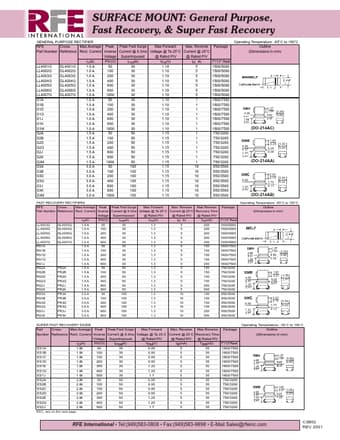

DL4001G Datasheet Preview — Preview of DL4001G PDF

Datasheet Details

Part number:

DL4001G

Manufacturer:

RFE

File Size:

144.87 KB

Description:

Surface mount: general purpose / fast recovery / super fast recovery.
