GBJ8005 BRIDGE RECTIFIER

GBJ8005 Description

BRIDGE RECTIFIER GBJ8005 Thru GBJ810 RoHS 8.0 Amps .

GBJ8005 Features

* UL Recognized
* Current 8 Amps
* Voltage Range 50V ~ 1000V
* Glass passivated chip junction
* High surge forward current capability
* GBJ available in 6A, 8A, 10A, 15A, 20A, 25A, 35A and 50A MECHANICAL DATA
* Molded plastic body (UL 94V-0 rat

📥 Download Datasheet

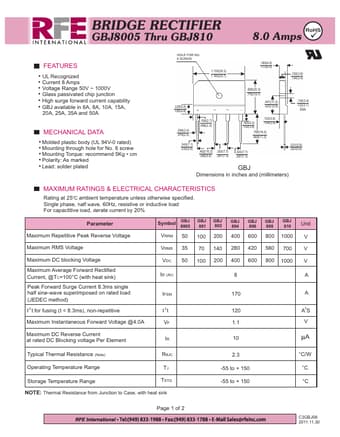

Preview of GBJ8005 PDF
datasheet Preview Page 2

Datasheet Details

Part number
GBJ8005
Manufacturer
RFE
File Size
214.55 KB
Datasheet
GBJ8005-RFE.pdf
Description
BRIDGE RECTIFIER
