JVR-10N180K Datasheet - RFE

JVR-10N180K METAL OXIDE VARISTOR

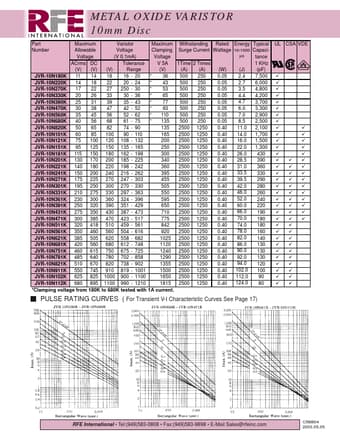

METAL OXIDE VARISTOR 10mm Disc Part Maximum Varistor Maximum Withstanding Rated Energy Typical UL CSA VDE Number Allowable Voltage Voltage (V 0.1mA) Clamping Surge Current Wattage 10/1000 Capaci- Voltage (8/20 µsec) µs tance ACrms DC Tolerance V 5A 1Time 2 Times 1 KHz (V) (V) (V) Range (V) (A) (A) (W) (J) (pF) JVR-10N180K 11 14 18 16 - 20 36 500 250 0.05 2.4 7,500 ü JVR-10N220K 14 18 22 20 - 24 43 500 250 0.05 2.7 6,000 ü JVR-10N270K 17 22 27 250 - 30 53 500.

JVR-10N180K-RFE.pdf

JVR-10N180K Datasheet Preview — Preview of JVR-10N180K PDF

Datasheet Details

Part number:

JVR-10N180K

Manufacturer:

RFE

File Size:

116.42 KB

Description:

Metal oxide varistor.
