KBPC10 - BRIDGE RECTIFIER

This page provides the datasheet information for the KBPC10, a member of the KBPC005 BRIDGE RECTIFIER family.

Datasheet Summary

Features

  • UL Recognized.
  • Current 15 Amps.
  • Voltage Range 50V ~ 1000V.
  • Glass passivated chip junction.
  • High surge forward current capability.
  • KBPC available in 15A, 25A, 35A, 50A.
  • Electrically isolated metal case for maximum heat dissipation.

📥 Download Datasheet

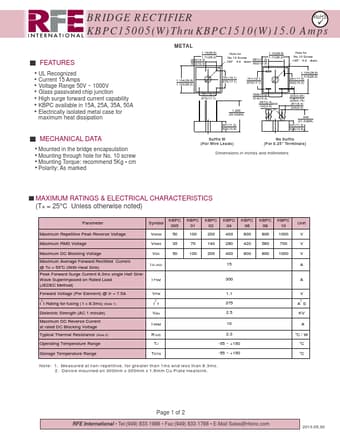

Datasheet preview – KBPC10
