KBPC108, KBPC1005 Bridge Rectifiers

RFE

Description

Bridge Rectifiers KBPC1005 Through KBPC110 KPBC1 .

📥 Download Datasheet

KBPC108 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBPC108, KBPC1005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: KBPC108, KBPC1005
Manufacturer: RFE
File Size: 898.62 KB
Datasheet: KBPC1005-RFE.pdf
Description: Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: KBPC108, KBPC1005.
Please refer to the document for exact specifications by model.

Applications

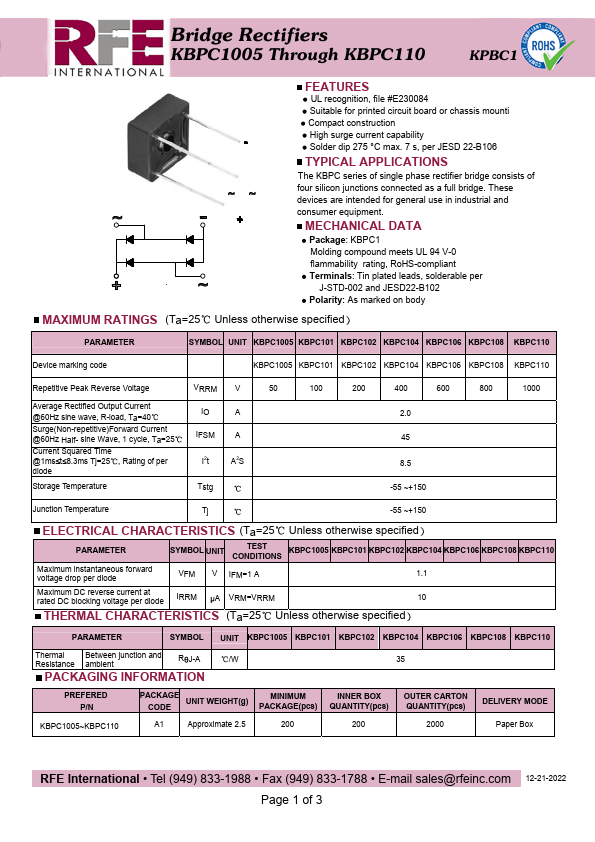

* The KBPC series of single phase rectifier bridge consists of ~~ four silicon junctions connected as a full bridge. These devices are intended for general use in industrial and ~ -+ consumer equipment. MECHANICAL DATA + ~ Package: KBPC1 Molding compound meets UL 94 V-0 flammability rating, R
