KBPC2504 Features
* UL Recognized
* Current 25 Amps
* Voltage Range 50V ~ 1000V
* Glass passivated chip junction
* High surge forward current capability
* KBPC available in 15A, 25A, 35A, 50A
* Electrically isolated metal case for maximum heat dissipation MECHAN

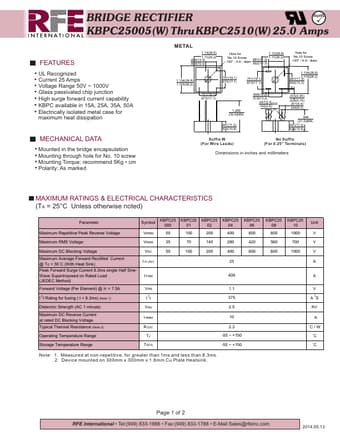

Datasheet Details
KBPC2504, KBPC25005
RFE
454.85 KB
Bridge rectifier.
This datasheet PDF includes multiple part numbers: KBPC2504, KBPC25005.
Please refer to the document for exact specifications by model.
