SF14G, SF11 SUPER FAST RECOVERY RECTIFIER

SF14G Description

SUPER FAST RECOVERY RECTIFIER RoHS SF11(G)Thru SF18(G) 1.0 Amp .

SF14G Features

* Available in glass passivated chip junction with G suffix
* Low forward voltage drop
* High current capability
* Low leakage current
* Super fast switching speed < 35ns MECHANICAL DATA
* Molded plastic body (UL 94V-0 rated)
* Lead: Axial lea

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SF14G, SF11. Please refer to the document for exact specifications by model.

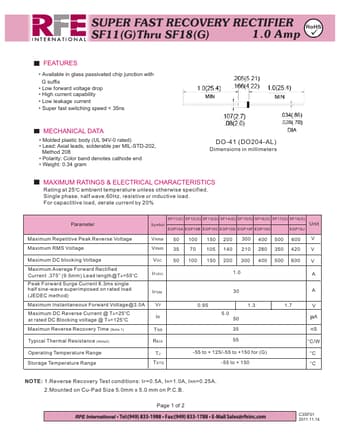

datasheet Preview Page 2

Datasheet Details

Part number
SF14G, SF11
Manufacturer
RFE
File Size
208.64 KB
Datasheet
SF11-RFE.pdf
Description
SUPER FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SF14G, SF11.
Please refer to the document for exact specifications by model.
