AD274

E-pHEMT MMIC

RFHIC

AD274 Features

* 2-Way Splitter

* 30MHz-1200MHz

* Small size (3X3 mm)

* QFN SMD Type package

* Higher productivity

* Lower manufacturing cost

* -57dBc CSO 135 Channels @ +15dBmV/ch

* -62dBc CTB 135 Channels @ +15dBmV/ch

* -66dBc XMD 135 Channe

AD274 General Description

AD274 is designed as low cost Active Divider for many applications including FTTH, CATV System. This MMIC is based on Gallium Arsenide Enhancement Mode pHEMT which shows low current draw and very low noise. The data in this spec sheet is valid only for 75ohm application. Electrical Specifications .

AD274 Datasheet (256.84 KB)

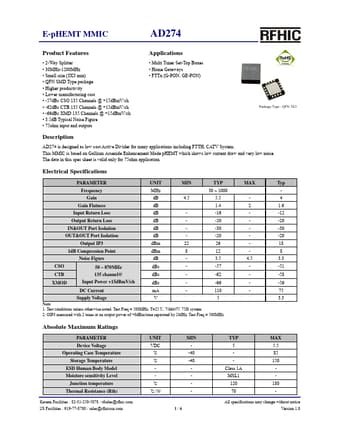

AD274 Datasheet Preview — Preview of AD274 PDF

Datasheet Details

Part number:

AD274

Manufacturer:

RFHIC

File Size:

256.84 KB

Description:

E-phemt mmic.
