AE616 Datasheet - RFHIC

AE616 - E-pHEMT

AE616 is a drive or pre-drive amplifier designed with GaAs E-pHEMT in a low cost SOT-89 package.

This E-pHEMT amplifier is designed as driver devices for infrastructure equipment in the 500~4000MHz Wireless technologies such as cellular, GSM, PCS, CDMA, W-CDMA, Wibro, Wimax.

Specifications PARAMETE

AE616 Features

* 500 ~ 4000MHz

* GaAs E-pHEMT

* 37dBm Output IP3

* 20dB Gain at 900MHz

* 24dBm P1 dB

* Single +5V Supply

* Pb Free / RoHS Standard AE616 Application

* Cellular, PCS, W-CDMA Systems

* High Linearity Drive Amplifier Package Typ

AE616_RFHIC.pdf

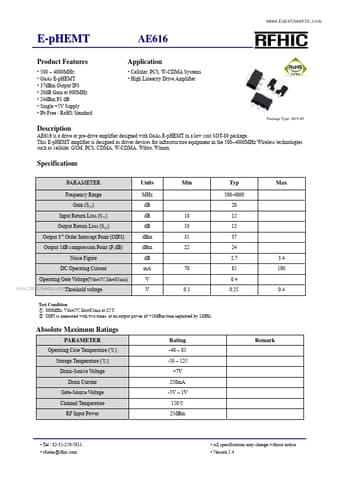

Preview of AE616 PDF
AE616 Datasheet Preview Page 2 AE616 Datasheet Preview Page 3

Datasheet Details

Part number:

AE616

Manufacturer:

RFHIC

File Size:

448.98 KB

Description:

E-phemt.
