TXC102 - Multi-channel High tae rate Programmable

RFM

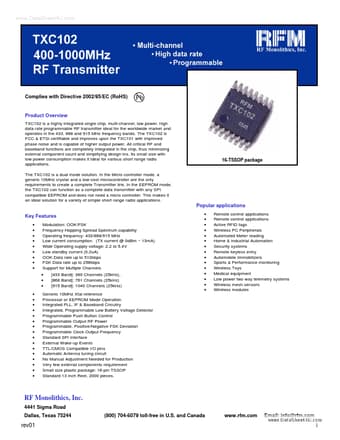

TXC102 Datasheet Preview — Preview of TXC102 PDF

Datasheet Details

Part number	TXC102
Manufacturer	RFM
File Size	387.23 KB
Description	Multi-channel High tae rate Programmable
Datasheet	TXC102_RFM.pdf

TXC102 Product details

Description

3 1.1 Processor Mode Pin Configuration 3 1.2 EEPROM Mode Pin Configuration 4 2.0 Functional Description 5 2.1 TXC102 Processor Mode Application 5 RF Transmitter Matching 5 Antenna Design Considerations 6 PCB Layout Considerations 6 2.2 EEPROM Mode Application 8 3.0 TXC102 Functional Characteristics 11 Output Amplifier 11 Frequency Control (PLL) and Frequency Synthesizer 11 Transmit Register 11 Crystal Oscillator 12 Wake-Up Mode 12 Low Battery Detector 12 Key Switch Inputs 12 SPI In

Features

Modulation: OOK/FSK Frequency Hopping Spread Spectrum capability Operating frequency: 433/868/915 MHz Low current consumption (TX current @ 0dBm ~ 13mA) Wide Operating supply voltage: 2.2 to 5.4V Low standby current (0.2uA) OOK Data rate up to 512kbps FSK Data rate up to 256kbps Support for Multiple Channels.
