RFFM4527 Amplifier Datasheet - RFMD

RFFM4527 Features

Amplifier
Noise Figure = 1.6dB
LNA Gain = 16dB
Bypass Loss = 6dB
Input and Output Matched to 50Ω
Integrated 2.4GHz Rejection Filter VCC RF_OUT

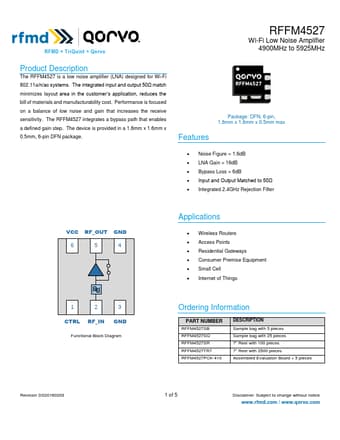

PDF File Details

Part number:

RFFM4527

Manufacturer:

RFMD

File Size:

317.88kb

Download:

📄 Datasheet

Description:

Wi-fi low noise amplifier. The RFFM4527 is a low noise amplifier (LNA) designed for Wi-Fi 802.11a/n/ac systems. The integrated input and output 50Ω match minimi

📥 Download PDF (317.88kb)

RFFM4527 Application

Applications
Wireless Routers
Access Points
Residential Gateways
Consumer Premise Equipment
Small
