PAT0510 Datasheet - RHOPOINT COMPONENTS

PAT0510 Thin Film Attenuators

www.DataSheet4U.com Thin Film Attenuators PAT 0510 Series 32 mW This 0402 size attenuator exhibits excellent high frequency characteristics. 0402 Size 6 Attenuation Values Face Down Mounting 0402 Size Dimensions in mm Specifications: Attenuation Tolerance 0,2,3,6,8,10dB 0 to 3dB: +/- 0.3dB 4 to 7dB: +/- 0.5dB 8 to 10dB: +/- 0.7dB 50 ohm <1.5 DC - 10GHz 32mW -55°C to +125°C Impedance VSWR Frequency Range Power Rating Operating Temperature Range Tel: +44 (0) 870.

PAT0510_RHOPOINTCOMPONENTS.pdf

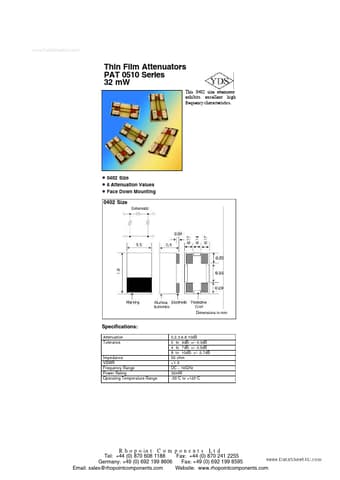

Preview of PAT0510 PDF

Datasheet Details

Part number:

PAT0510

Manufacturer:

RHOPOINT COMPONENTS

File Size:

102.02 KB

Description:

Thin film attenuators.
