Part number: RP115L211D5
Manufacturer: RICOH electronics
File Size: 2.92MB
Download: 📄 Datasheet
Description: Low On Resistance / Low Voltage 1ch 500mA/ 1.0A Alternative LDO
* Supply Current
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
.
The RP115L Series (DFN1216-8 package) can choose the output current limit between 1.0A or 500mA by alternating the LCON.
RP115L: DFN1216-8*3
Pin No
Symbol
Pin Description
1
VOUT*4
Output Pin
2
VOUT*4
Output Pin
3
LCON
Output Current Limit Alternate Pin (“H”=1A, “L”=500mA)
4
VFB*4
Feedback Pin
5
GND
Ground Pin
6 CE Chip Enable Pin
7
VDD*5
Input Pi.
Image gallery
TAGS
📁 Related Datasheet
RP115L211D - Low On Resistance / Low Voltage 1ch 500mA/ 1.0A Alternative LDO
(RICOH electronics)

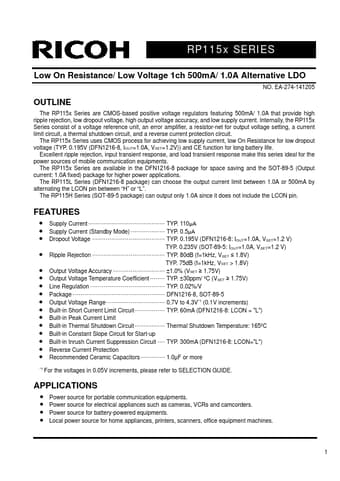

RP115x SERIES
