R1121N301A LOW NOISE 150mA LDO REGULATOR

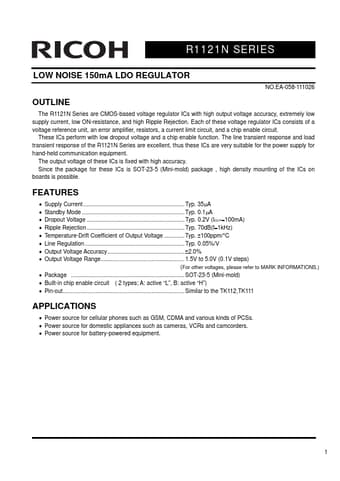

R1121N SERIES LOW NOISE 150mA LDO REGULATOR NO.EA-058-111026 OUTLINE The R1121N Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current, low ON-resistance, and high Ripple Rejection. Each of these voltage regulator ICs consists of a voltage reference unit, an error amplifier, resistors, a current limit circuit, and a chip enable circuit. These ICs perform with low dropout voltage and a chip enable function. The line transient response and lo.

R1121N301A Features

* Supply Current Typ. 35μA

* Standby Mode

R1121N301A Datasheet (209.94 KB)
