R1280D002B, R1280D002A - 2CH PWM DC/DC CONTROLLER

R1280D002B Description

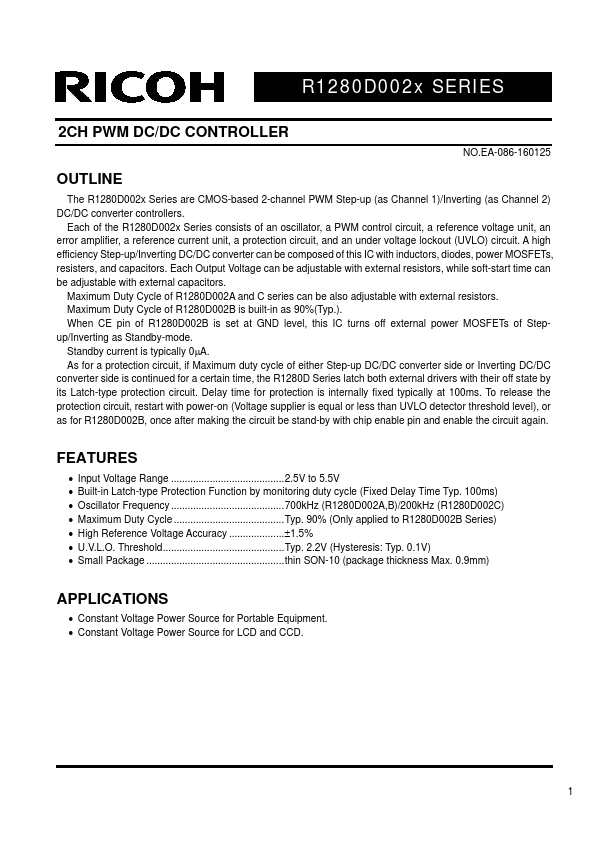

R1280D002x SERIES 2CH PWM DC/DC CONTROLLER NO.EA-086-160125 OUTLINE The R1280D002x Series are CMOS-based 2-channel PWM Step-up (as Channel 1)/Inver.

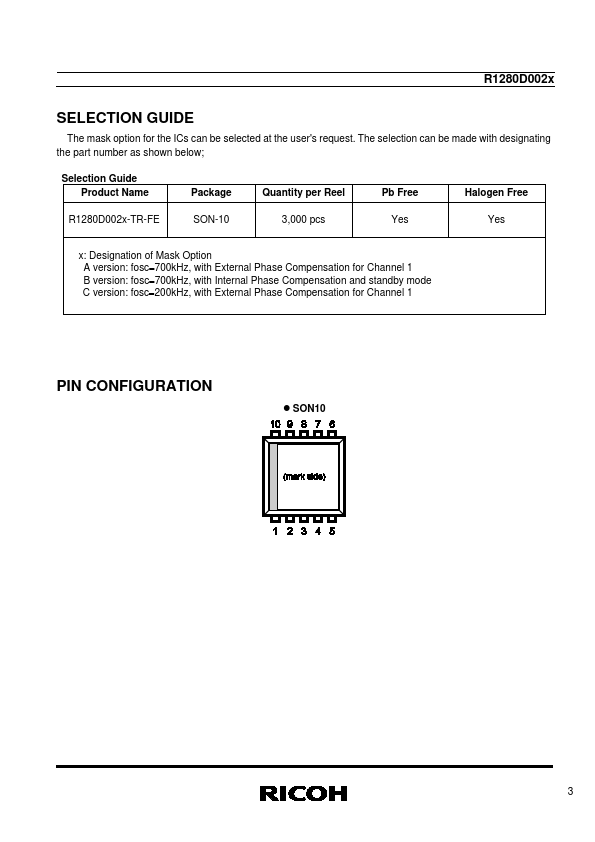

R1280D002A/C Pin No 1 2 Symbol EXT1 GND 3 AMPOUT1 4 DTC1 5 VFB1 6 VFB2 7 DTC2 8 Vrefout 9 VIN 10 EXT2. R1280D00.

R1280D002B Features

* Input Voltage Range 2.5V to 5.5V
* Built-in Latch-type Protection Function by monitoring duty cycle (Fixed Delay Time Typ. 100ms)
* Oscillator Frequency 700kHz (R1280D002A,B)/200kHz (R1280D002C)
* Maximum Duty Cycle Typ. 90% (Only applied to R1280D002B Series)

R1280D002B Applications

* Constant Voltage Power Source for Portable Equipment.

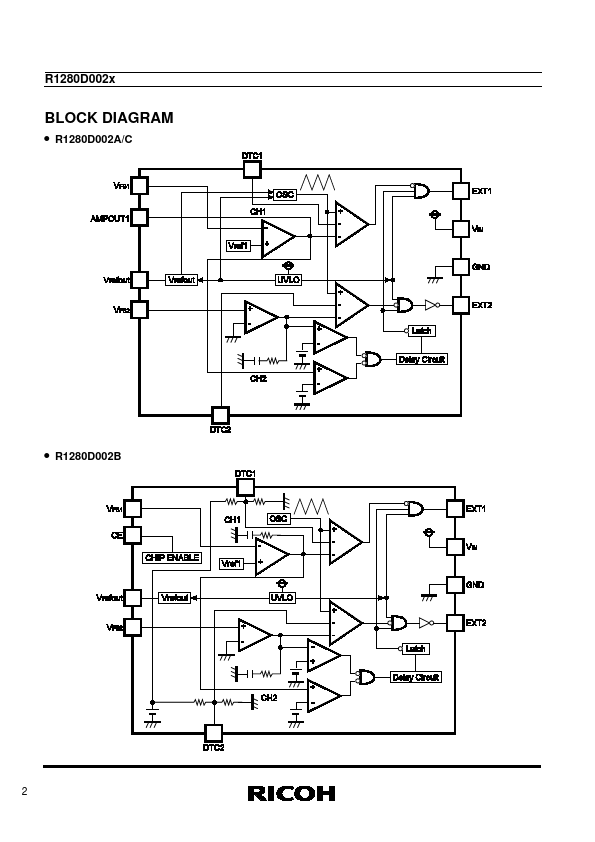

* Constant Voltage Power Source for LCD and CCD. 1 R1280D002x BLOCK DIAGRAM
* R1280D002A/C
* R1280D002B 2 R1280D002x SELECTION GUIDE The mask option for the ICs can be selected at the user's request. The sele
