Datasheet Details
Part number:
RH5RE52A, RH5RE
Manufacturer:
RICOH
File Size:
122.70 KB
Description:
Voltage regulator.
Note:
This datasheet PDF includes multiple part numbers: RH5RE52A, RH5RE.
Please refer to the document for exact specifications by model.
RH5RE52A, RH5RE, VOLTAGE REGULATOR

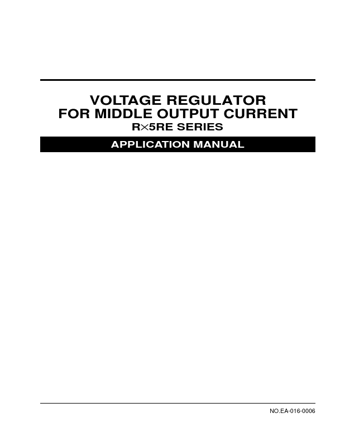

VOLTAGE REGULATOR FOR MIDDLE OUTPUT CURRENT R×5RE SERIES APPLICATION MANUAL NO.EA-016-0006 VOLTAGE REGULATOR FOR MIDDLE OUTPUT CURRENT R×5RE SERIES OUTLINE The R×5RE Series are voltage regulator ICs with high output voltage accuracy and ultra-low quiescent current by CMOS process.
Each of these ICs consists of a voltage reference unit, an error amplifier, a driver transistor, and resistors for setting output voltage, and a current limit circuit.
By use of these ICs, a constant voltage power su
RH5RE52A Features
* Ultra-low Quiescent Current TYP. 1.1µA (R×5RE30A,VIN=5.0V)
* Ultra-low Dropout Voltage TYP.
