RN5RL20A - VOLTAGE REGULATOR

This page provides the datasheet information for the RN5RL20A, a member of the RN5RL VOLTAGE REGULATOR family.

Datasheet Summary

Features

  • Ultra-low Quiescent Current TYP. 1.1µA (R×5RL30A, VIN=5.0V).
  • Small Dropout Voltage TYP. 30mV (R×5RL50A, IOUT=1mA).
  • Low Temperature-Drift Coefficient of Output Voltage TYP. ±100 ppm/˚C.
  • Excellent Line RegulationTYP. 0.1%/V.
  • Output Voltage Stepwise setting with a step of 0.1V in the range.

📥 Download Datasheet

Datasheet preview – RN5RL20A

Datasheet Details

Part number RN5RL20A
Manufacturer RICOH
File Size 130.91 KB
Description VOLTAGE REGULATOR
Datasheet download datasheet RN5RL20A Datasheet
Additional preview pages of the RN5RL20A datasheet.

📁 Similar Datasheet

  • RN5RF - LOW RIPPLE VOLTAGE REGULATOR WITH EXTERNAL TRANSISTOR (RICOH electronics devices division)
  • RN5RF30AA - LOW RIPPLE VOLTAGE REGULATOR WITH EXTERNAL TRANSISTOR (RICOH electronics devices division)
  • RN5RF30AC - LOW RIPPLE VOLTAGE REGULATOR WITH EXTERNAL TRANSISTOR (RICOH electronics devices division)
  • RN5RF30BA - LOW RIPPLE VOLTAGE REGULATOR WITH EXTERNAL TRANSISTOR (RICOH electronics devices division)
  • RN5RF30BC - LOW RIPPLE VOLTAGE REGULATOR WITH EXTERNAL TRANSISTOR (RICOH electronics devices division)
  • RN5RF50AA - LOW RIPPLE VOLTAGE REGULATOR WITH EXTERNAL TRANSISTOR (RICOH electronics devices division)
  • RN5RF50AC - LOW RIPPLE VOLTAGE REGULATOR WITH EXTERNAL TRANSISTOR (RICOH electronics devices division)
  • RN5RF50BA - LOW RIPPLE VOLTAGE REGULATOR WITH EXTERNAL TRANSISTOR (RICOH electronics devices division)
  • RN5RF50BC - LOW RIPPLE VOLTAGE REGULATOR WITH EXTERNAL TRANSISTOR (RICOH electronics devices division)
  • RN5RG - VOLTAGE REGULATOR (RICOH electronics devices division)
Other Datasheets by RICOH

Full PDF Text Transcription

Click to expand full text

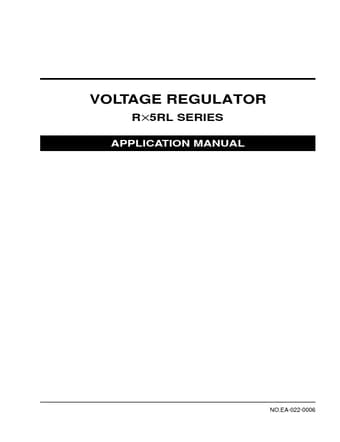

VOLTAGE REGULATOR R×5RL SERIES APPLICATION MANUAL NO.EA-022-0006 R×5RL SERIES VOLTAGE REGULATOR OUTLINE The R×5RL Series are voltage regulator ICs with high accuracy output voltage and ultra-low quiescent cur- rent by CMOS process. Each of these ICs consists of a voltage reference unit, an error amplifier, a driver transistor, and resistors for setting output voltage. The output voltage is fixed with high accuracy. Three types of packages, TO-92, SOT-89 (Mini-power Mold), SOT-23-5 (Mini-mold), are available. FEATURES • Ultra-low Quiescent Current ...........................TYP. 1.1µA (R×5RL30A, VIN=5.0V) • Small Dropout Voltage .....................................TYP. 30mV (R×5RL50A, IOUT=1mA) • Low Temperature-Drift Coefficient of Output Voltage ...............TYP.
