RN5RL39A Datasheet - RICOH

RN5RL39A VOLTAGE REGULATOR

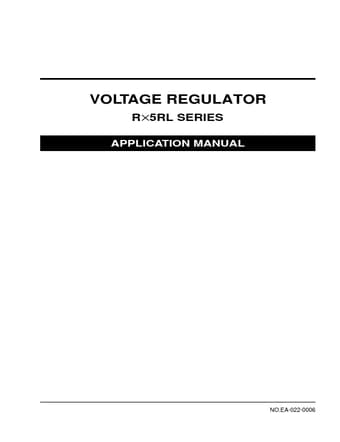

VOLTAGE REGULATOR R×5RL SERIES APPLICATION MANUAL NO.EA-022-0006 R×5RL SERIES VOLTAGE REGULATOR OUTLINE The R×5RL Series are voltage regulator ICs with high accuracy output voltage and ultra-low quiescent cur- rent by CMOS process. Each of these ICs consists of a voltage reference unit, an error amplifier, a driver transistor, and resistors for setting output voltage. The output voltage is fixed with high accuracy. Three types of packages, TO-92, SOT-89 (Mini-power Mold), SOT-23-5 (Mini-mold).

RN5RL39A Features

* Ultra-low Quiescent Current TYP. 1.1µA (R×5RL30A, VIN=5.0V)

* Small Dropout Voltage TYP. 30mV (R×5RL50A, IOUT=1mA)

* Low Temperature-Drift Coefficient of Output Voltage TYP. ±100 ppm/˚C

* Excellent Line RegulationTYP. 0.1%/V

* Output Voltage Stepwise setting

RN5RL39A Datasheet (130.91 KB)
