RN5RT38A LOW DROPOUT VOLTAGE REGULATOR

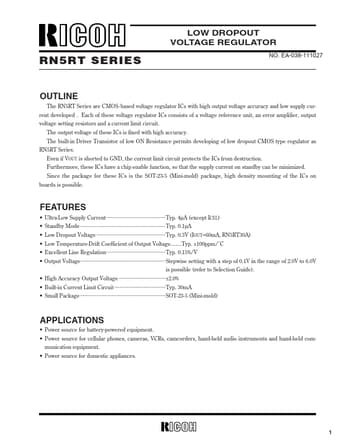

RN5RT SERIES LOW DROPOUT VOLTAGE REGULATOR NO. EA-038-111027 OUTLINE The RN5RT Series are CMOS-based voltage regulator ICs with high output voltage accuracy and low supply current developed . Each of these voltage regulator ICs consists of a voltage reference unit, an error amplifier, output voltage setting resistors and a current limit circuit. The output voltage of these ICs is fixed with high accuracy. The built-in Driver Transistor of low ON Resistance permits developing of low dropout CMO.

RN5RT38A Features

* Ultra-Low Supply CurrentTyp. 4µA (except ICEL)

* Standby Mode
