RN5VD32C LOW VOLTAGE DETECTOR

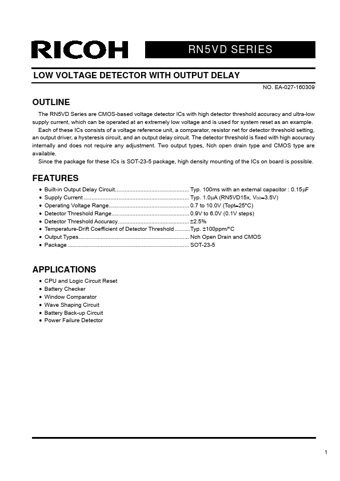

RN5VD SERIES LOW VOLTAGE DETECTOR WITH OUTPUT DELAY NO. EA-027-160309 OUTLINE The RN5VD Series are CMOS-based voltage detector ICs with high detector threshold accuracy and ultra-low supply current, which can be operated at an extremely low voltage and is used for system reset as an example. Each of these ICs consists of a voltage reference unit, a comparator, resistor net for detector threshold setting, an output driver, a hysteresis circuit, and an output delay circuit. The detector thresho.

RN5VD32C Features

* Built-in Output Delay Circuit Typ. 100ms with an external capacitor : 0.15µF

* Supply Current Typ. 1.0µA (RN5VD15
