| Part number | RP154N, RP154x |
|---|---|
| Manufacturer | RICOH |
| File Size | 524.52 KB |

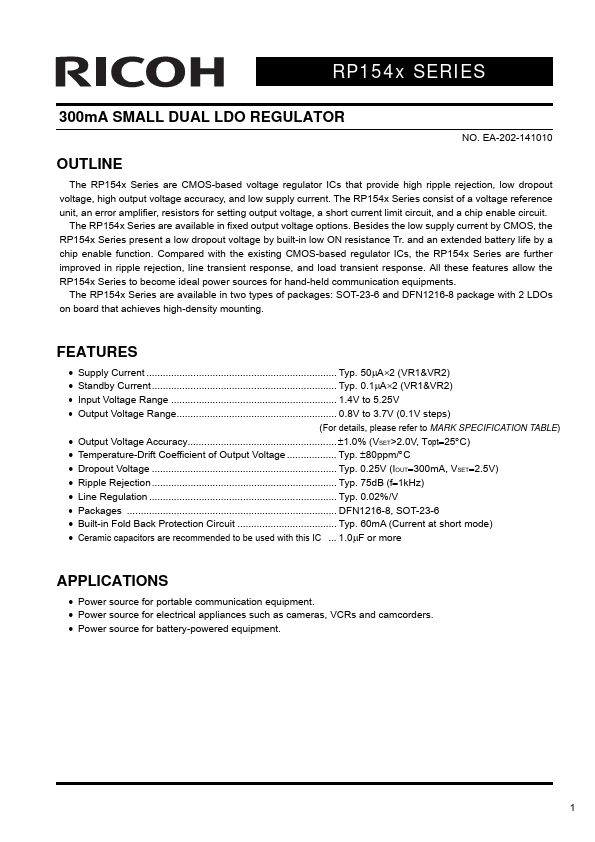

| Description | 300mA SMALL DUAL LDO REGULATOR |
| Datasheet |
 RP154x-RICOH.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: RP154N, RP154x. Please refer to the document for exact specifications by model. |

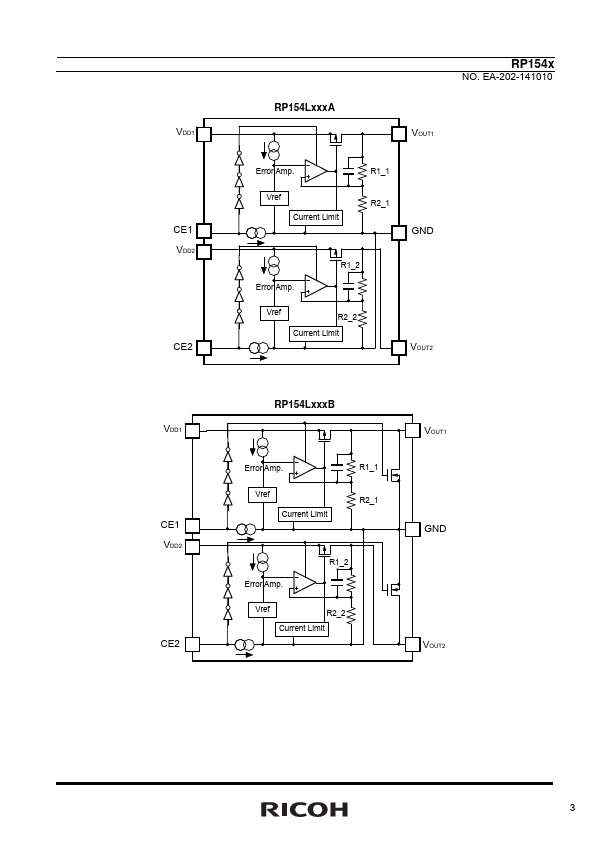

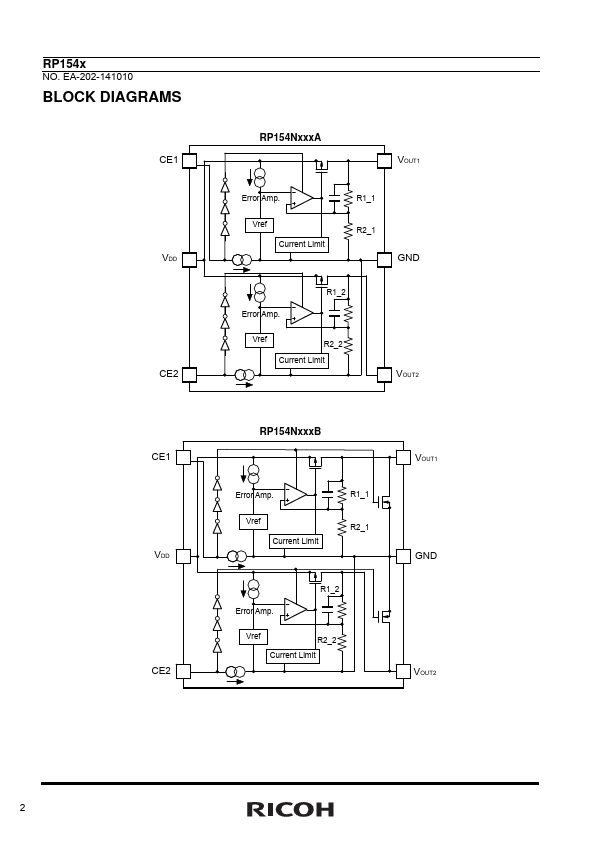

DFN1216-8 Pin No.Symbol Description 1 GND Ground Pin2 2 VOUT1 Output Pin 1 3 VOUT2 Output Pin 2 4 GND Ground Pin2 5 CE2 Chip Enable Pin 2 ("H" Active) 6 VDD2 Input Pin 7 VDD1 Input Pin 8 CE1 Chip Enable Pin 1 ("H" Active) 1) Tab is GND level.(They are connected to the reverse side of this IC).The tab is better to be connected to the GND, but leaving it open is also acceptable.2) The GND pin must be wired together when it is mounted on board. SO
