RS5C316B URTRA-COMPACT SERIAL ALARM REAL TIME CLOCK ICs

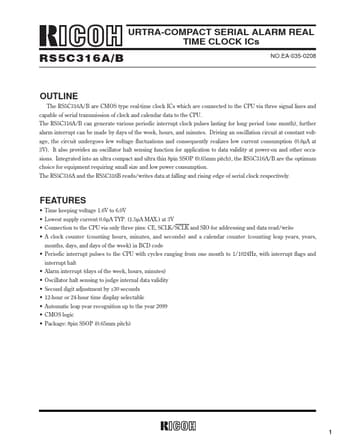

URTRA-COMPACT SERIAL ALARM REAL TIME CLOCK ICs RS5C316A/B NO.EA-035-0208 OUTLINE The RS5C316A/B are CMOS type real-time clock ICs which are connected to the CPU via three signal lines and capable of serial transmission of clock and calendar data to the CPU. The RS5C316A/B can generate various periodic interrupt clock pulses lasting for long period (one month), further alarm interrupt can be made by days of the week, hours, and minutes. Driving an oscillation circuit at constant voltage, the c.

RS5C316A-RICOH.pdf

RS5C316B Datasheet Preview — This datasheet PDF includes multiple part numbers: RS5C316B, RS5C316A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RS5C316B, RS5C316A

Manufacturer:

RICOH

File Size:

254.70 KB

Description:

Urtra-compact serial alarm real time clock ics.

Note:

This datasheet PDF includes multiple part numbers: RS5C316B, RS5C316A.
Please refer to the document for exact specifications by model.
