BD3020HFP - 500mA Output LDO Regulators

📥 Download Datasheet

Datasheet Details

Part number BD3020HFP
Manufacturer ROHM
File Size 1.20 MB
Description 500mA Output LDO Regulators
Datasheet download datasheet BD3020HFP Datasheet

General Description

BD3020HFP BD3021HFP is a regulator IC with integrated WDT (Watch Dog Timer), high output voltage accuracy ±2.0 % and 80 µA (Typ) low circuit current consumption.

These are supports usage of low ESR ceramic capacitor for output stability.

The reset detection voltage can be adjusted by connecting resistors on the Vs terminal (BD3020HFP).

Overview

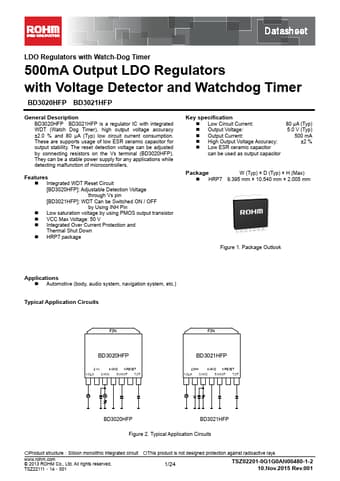

Datasheet LDO Regulators with Watch-Dog Timer 500mA Output LDO Regulators with Voltage Detector and Watchdog Timer BD3020HFP BD3021HFP.

Key Features

  • Integrated WDT Reset Circuit [BD3020HFP]: Adjustable Detection Voltage through Vs pin [BD3021HFP]: WDT Can be Switched ON / OFF by Using INH Pin.
  • Low saturation voltage by using PMOS output transistor.
  • VCC Max Voltage: 50 V.
  • Integrated Over Current Protection and Thermal Shut Down.
  • HRP7 package Key specification.
  • Low Circuit Current:.
  • Output Voltage:.
  • Output Current:.
  • High Output Voltage Accuracy:.
  • Low ESR ceramic capacitor can be used as outpu.
