BD9406KS2 28bit Audio DSP

BD9406KS2 Description

Digital Sound Processors for FPD TVs 28bit Audio DSP with Built-in 2ch ADC, 6ch DAC and ASRC BD9406KS2 No.12083EAT01 *General .
This LSI is the digital sound processor which made the use digital signal processing for FPD TVs.

BD9406KS2 Features

* Digital Signal Processor unit Word length: 28bit (Data RAM) The fastest machine Cycle: 40.7ns (512fs, fs=48kHz) Multiplier: 28x24 → 52 bit Adder: 28+28 → 28bit Data RAM: 256x28bit Coefficient RAM: 128x24bit Sampling Frequency: fs=48kHz Master Clock: 512fs (24.576Mhz, fs=48kHz)

📥 Download Datasheet

Preview of BD9406KS2 PDF

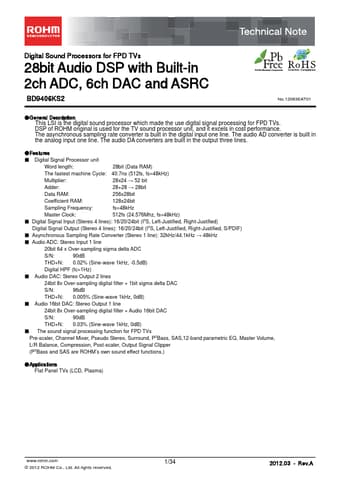

datasheet Preview Page 2 datasheet Preview Page 3
