BU7244YFV-C - CMOS Operational Amplifier

BU7244YFV-C Description

Datasheet Input/Output Rail-to-Rail Low Supply Current CMOS Operational Amplifier for Automotive BU7244YFV-C General .
BU7244YFV-C is an input/output rail-to-rail CMOS operational amplifier that operates on a wide temperature range and low supply current.

BU7244YFV-C Features

* AEC-Q100 Qualified(Note 1)
* Input/Output Rail-to-Rail
* Low Operating Supply Voltage
* Low Supply Current
* Low Input Bias Current

BU7244YFV-C Applications

* Sensor Amplifiers
* Battery-powered Equipment
* Automotive Electronics Key Specifications
* Operating Supply Voltage Range Single Supply: 1.8 V to 5.5 V Dual Supply: ±0.90 V to ±2.75 V
* Operating Temperature Range: -40 °C to +125 °C
* Supply Current: 360 µA (Typ)

📥 Download Datasheet

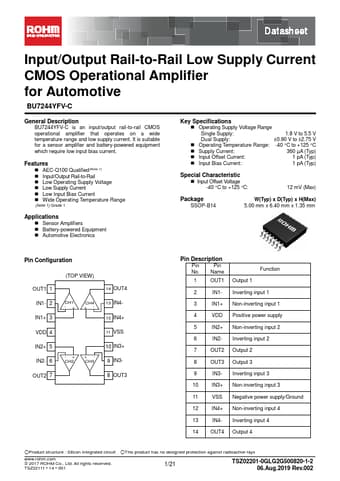

Preview of BU7244YFV-C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BU7244YFV-C
Manufacturer
ROHM ↗
File Size
1.22 MB
Datasheet
BU7244YFV-C-ROHM.pdf
Description
CMOS Operational Amplifier
