BU97930MUV - Multifunction LCD Segment Driver

BU97930MUV Description

Datasheet Multifunction LCD Segment Driver BU97930MUV MAX 108 segments (SEG27×COM4) *.

BU97930MUV Features

* Integrated RAM for display data (DDRAM): 27 x 4 bit (Max 108 Segment)
* LCD drive output: 4 Common output, Max 27 Segment output
* Integrated 1ch LED driver circuit
* Segment /GPO(Max 4port) output mode selectable
* Support PWM generation from ext. or internal clock (Resolution

📥 Download Datasheet

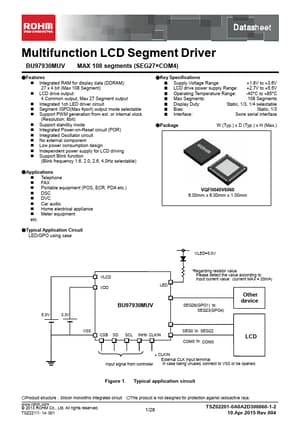

Preview of BU97930MUV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BU97930MUV
Manufacturer
ROHM ↗
File Size
1.12 MB
Datasheet
BU97930MUV-ROHM.pdf
Description
Multifunction LCD Segment Driver
