BZX84C3V3L - Zener Diode

📥 Download Datasheet

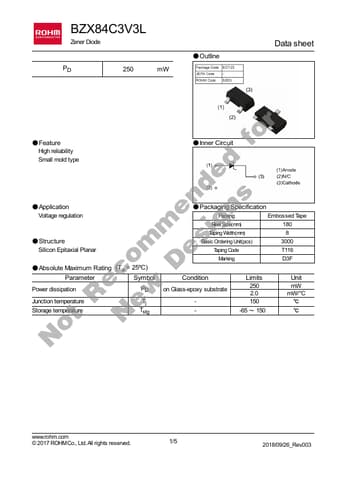

Datasheet preview – BZX84C3V3L

Datasheet Details

Part number BZX84C3V3L
Manufacturer ROHM
File Size 1.45 MB
Description Zener Diode
Datasheet download datasheet BZX84C3V3L Datasheet
Additional preview pages of the BZX84C3V3L datasheet.

📁 Similar Datasheet

  • BZX84C3V3LT1 - 225 mW SOT-23 Zener Voltage Regulator Diodes (Motorola Inc)
  • BZX84C3V3LT1G - Zener Voltage Regulators (ON Semiconductor)
  • BZX84C3V3 - Zeners (Fairchild Semiconductor)
  • BZX84C3V3 - Surface Mount Zener Diodes (GOOD-ARK)
  • BZX84C3V3 - Surface Mount Silicon Planar Zener Diodes (Diotec Semiconductor)
  • BZX84C3V3 - Small Signal Zener Diodes (Vishay)
  • BZX84C3V3 - 350mW SURFACE MOUNT ZENER DIODE (WON-TOP)
  • BZX84C3V3 - 350mW SURFACE MOUNT ZENER DIODE (Diodes)
  • BZX84C3V3 - Silicon Planar Zener Diodes (JGD)
  • BZX84C3V3 - SILICON PLANAR ZENER DIODES (SEMTECH)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
NotNeRwecDoemsimgennsded for BZX84C3V3L Zener Diode 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　　　 　 　 ●Outline PD 250 mW ●Feature High reliability Small mold type ●Inner Circuit Data sheet 　　　 　 　 　 　 　 　 　 　 　　　 ●Application Voltage regulation ●Structure Silicon Epitaxial Planar ●Absolute Maximum Rating (Ta = 25ºC) Parameter Symbol Power dissipation PD Junction temperature Storage temperature Tj Tstg ●Packaging Specification Packing Embossed Tape Reel Size(mm) 180 Taping Width(mm) 8 Basic Ordering Unit(pcs) 3000 Taping Code T116 Marking D3F Condition on Glass-epoxy substrate - Limits 250 2.0 150 -65 ～ 150　 Unit mW mW/°C ℃ ℃ www.rohm.com © 2017 ROHMCo., Ltd.All rights reserved. 　 　 　　　　 　 　 1/5 　 2018/09/26_Rev.
