DTC115TM

NPN 100mA 50V Digital Transistors

DTC115TM Features

* 1) Built-In Biasing Resistors, R1 = 100kΩ 2) Built-in bias resistors enable the configuration of  an inverter circuit without connecting external  input resistors (see inner circuit) . 3) Only the on/off conditions need to be set  for operation, making the circuit design easy. 4) Complementary PNP T

DTC115TM Datasheet (1.03 MB)

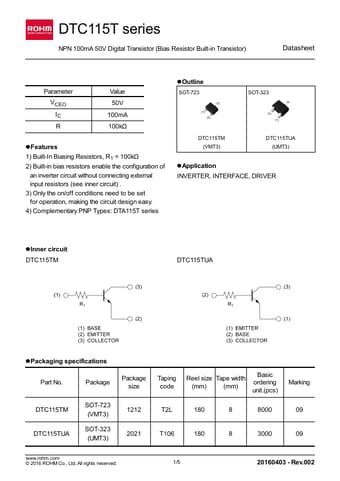

Preview of DTC115TM PDF

Datasheet Details

Part number:

DTC115TM

Manufacturer:

ROHM ↗

File Size:

1.03 MB

Description:

Npn 100ma 50v digital transistors.
