DTC143XEFRA - Digital Transistor

Features

  • 1) Built-In Biasing Resistors 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary PNP Types: DTA143XE FRA lOutline SOT-416 　 SC-75A 　 　 　 　 　 (EMT3) 　 　 　 　 　　　　　　　　 lInner circuit l.

📥 Download Datasheet

Datasheet preview – DTC143XEFRA

Datasheet Details

Part number DTC143XEFRA
Manufacturer ROHM
File Size 733.75 KB
Description Digital Transistor
Datasheet download datasheet DTC143XEFRA Datasheet
Additional preview pages of the DTC143XEFRA datasheet.

📁 Similar Datasheet

  • DTC143XE - NPN Digital Transistor (LGE)
  • DTC143XE - NPN Digital Transistors (SeCoS)
  • DTC143XE - NPN Small Signal Transistor (Taiwan Semiconductor)
  • DTC143X - NPN DIGITAL TRANSISTOR (UTC)
  • DTC143XCA - DIGITAL TRANSISTOR (Rectron Semiconductor)
  • DTC143XCA - NPN Digital Transistors (SeCoS)
  • DTC143XCA - NPN Digital Transistor (LGE)
  • DTC143XCA - Digital Transistor (GME)
  • DTC143XCA - Digital Transistors (MCC)
  • DTC143XCA - NPN Small Signal Transistor (Taiwan Semiconductor)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text

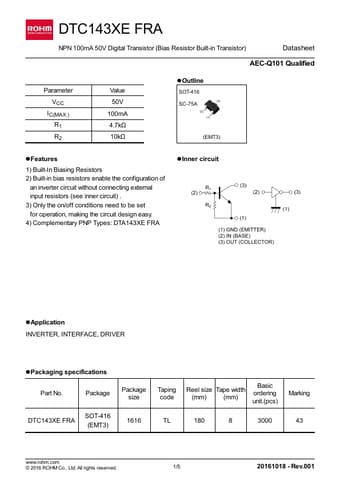

DTC143XE FRA NPN 100mA 50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet AEC-Q101 Qualified Parameter VCC IC(MAX.) R1 R2 Value 50V 100mA 4.7kΩ 10kΩ lFeatures 1) Built-In Biasing Resistors 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary PNP Types: DTA143XE FRA lOutline SOT-416 　 SC-75A 　 　 　 　 　 (EMT3) 　 　 　 　 　　　　　　　　 lInner circuit lApplication INVERTER, INTERFACE, DRIVER lPackaging specifications Part No. Package Package size 　　　　　　　　　　　　　　　　　　　　　　 Taping code Reel size Tape width (mm) (mm) Basic ordering unit.
