RF1001T2DFH - Fast Recovery Diode

RF1001T2DFH Description

Fast recovery diodes RF1001T2DFH *Applications General rectification *.

RF1001T2DFH Features

* 1) Cathode common type. (TO-220) 2) Ultra Low VF 3) Very fast recovery 4) Low switching loss
* Construction Silicon epitaxial planar
* Dimensions (Unit : mm) 10.0±0.3 0.1 4.5±0.3 0.1 2.8±0.2 0.1 15.0±0.4 0.2 8.0 8.0±0.2 12.0±0.2 5.0±0.2 13.5MIN 1.2 1.3 0.8 (1) (2) (3) 0.7±0.1 0.05 RO

RF1001T2DFH Applications

* General rectification

📥 Download Datasheet

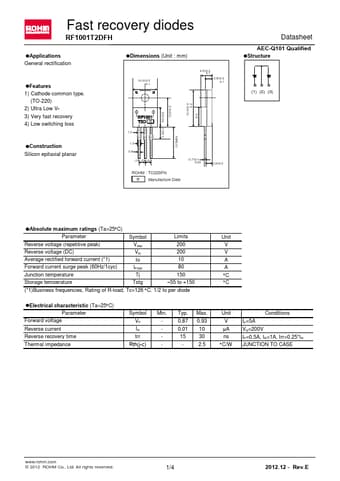

Preview of RF1001T2DFH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RF1001T2DFH
Manufacturer
ROHM ↗
File Size
1.12 MB
Datasheet
RF1001T2DFH-ROHM.pdf
Description
Fast Recovery Diode
