RLD2WMNL2 Datasheet - ROHM

RLD2WMNL2 Laser Diode

650/780nm 2wavelength Single Mode Laser Diode RLD2WMNL2 -01x Datasheet Application Optical disk pickup Sensor Etc. Outline view Merit Single mode Φ5.6 metal stem Absolute Maximum Ratings (Tc=25°C) 【780nm LD / 650nm LD】 Parameter Symbol Ratings Unit Optical output Po 7 mW LD Vr 2V Reverse voltage PIN PD Vr(PD) 20 V Operating temp. Top -30 to 80 °C Storage temp. Tstg -40 to 85 °C Characteristics (Tc=25°C) 【780nm LD】 Parameter Symbol Conditions Threshold current Ith.

RLD2WMNL2 Datasheet (771.59 KB)

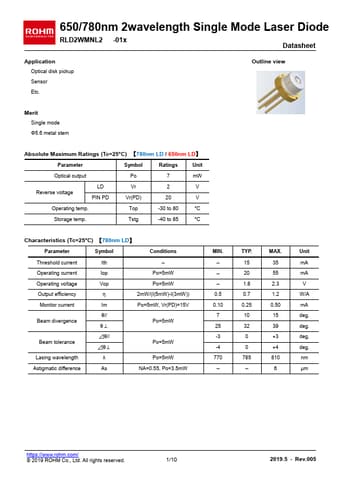

Preview of RLD2WMNL2 PDF
RLD2WMNL2 Datasheet Preview Page 2 RLD2WMNL2 Datasheet Preview Page 3

Datasheet Details

Part number:

RLD2WMNL2

Manufacturer:

ROHM ↗

File Size:

771.59 KB

Description:

Laser diode.
