- Description
- 80A 75V N-channel Enhancement Mode Power MOSFET
D7509 Description

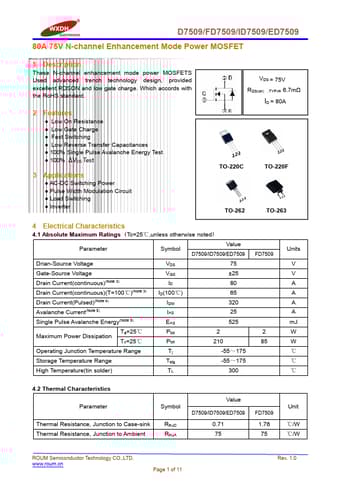

D7509/FD7509/ID7509/ED7509 80A 75V N-channel Enhancement Mode Power MOSFET 1 .
These N-channel enhancement mode power MOSFETS Used advanced trench technology design, provided excellent RDSON and low gate charge.
D7509 Features
* Low On Resistance
* Low Gate Charge
* Fast Switching
* Low Reverse Transfer Capacitances
* 100% Single Pulse Avalanche Energy Test
D7509 Applications
* AC-DC Switching Power
* Pulse Width Modulation Circuit
* Load Switching
* Inverter
VDS = 75V RDS(on) （TYP)= 6.7mΩ
ID = 80A
TO-220C
TO-220F
TO-262
TO-263
4 Electrical Characteristics
4.1 Absolute Maximum Ratings (Tc=25℃,unless otherwise noted)
Parameter
Symbol
Value
D7509/I
