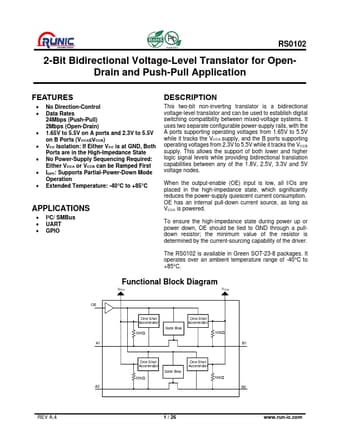

RS0102
FEATURES
- No Direction-Control
- Data Rates
24Mbps (Push-Pull) 2Mbps (Open-Drain)
- 1.65V to 5.5V on A ports and 2.3V to 5.5V on B Ports (VCCA≤VCCB)
- VCC Isolation: If Either VCC is at GND, Both Ports are in the High-Impedance State
- No Power-Supply Sequencing Required: Either VCCA or VCCB can be Ramped First
- IOFF: Supports Partial-Power-Down Mode Operation
- Extended Temperature: -40°C to +85°C
APPLICATIONS
- I2C/ SMBus
- UART
- GPIO
DESCRIPTION
This two-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching patibility between mixed-voltage systems. It uses two separate configurable power-supply rails, with the A ports supporting operating voltages from 1.65V to 5.5V while it tracks the VCCA supply, and the B ports supporting operating voltages from 2.3V to 5.5V while it tracks the VCCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation...
