RS0104 - 4-Bit Bidirectional Voltage-Level Translator

Product Overview

RUNIC

📥 Download Datasheet

RS0104 4-Bit Bidirectional Voltage-Level Translator by RUNIC - Datasheet Preview — Datasheet preview – RS0104

Datasheet Details

Part number	RS0104
Manufacturer	RUNIC
File Size	566.28 KB
Description	4-Bit Bidirectional Voltage-Level Translator
Datasheet	RS0104 Datasheet

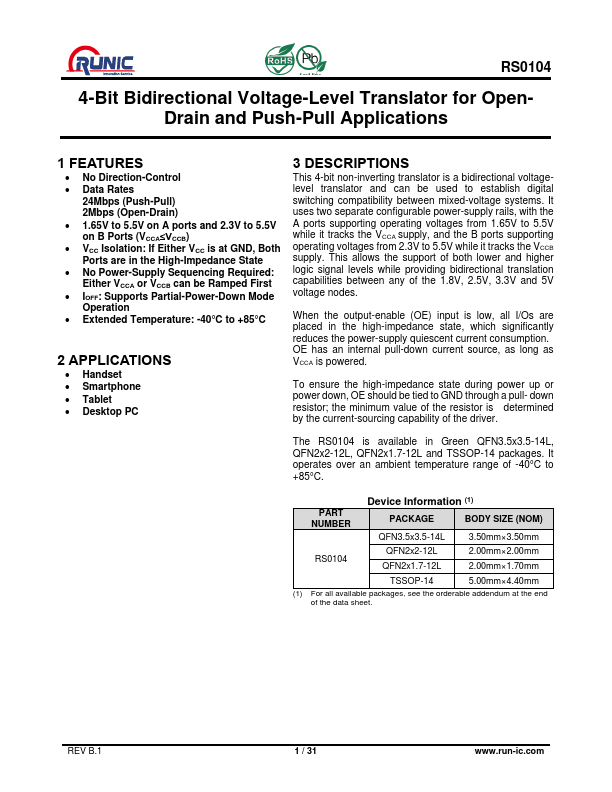

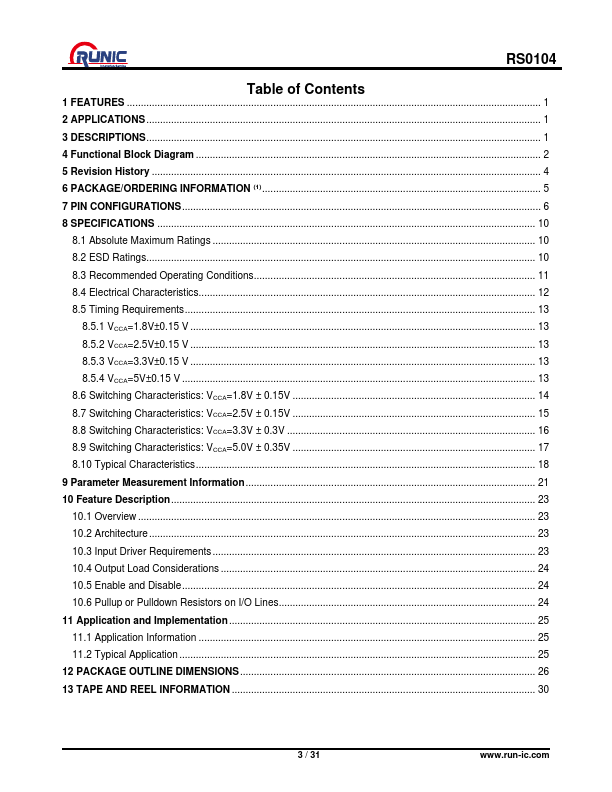

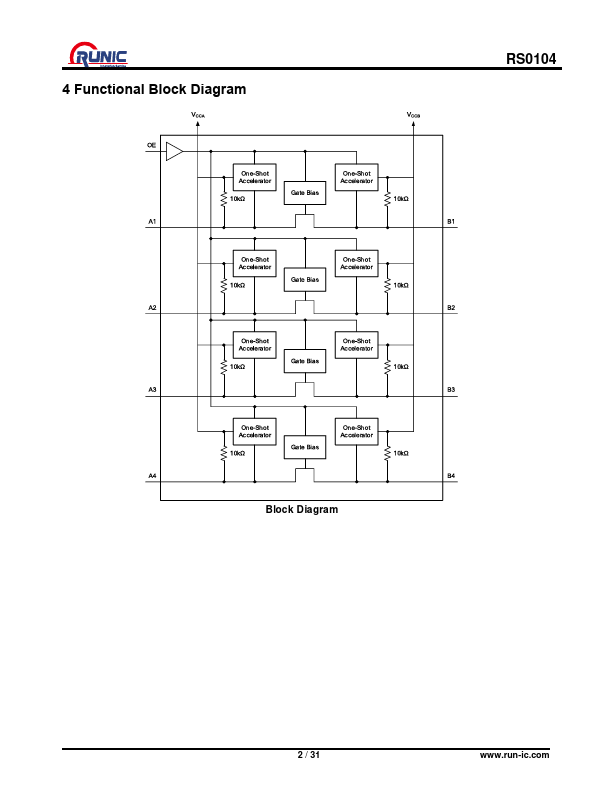

Additional preview pages of the RS0104 datasheet.

Product details

Description

This 4-bit non-inverting translator is a bidirectional voltagelevel translator and can be used to establish digital switching compatibility between mixed-voltage systems.

Features

No Direction-Control.
Data Rates 24Mbps (Push-Pull) 2Mbps (Open-Drain).
1.65V to 5.5V on A ports and 2.3V to 5.5V on B Ports (VCCA≤VCCB).
VCC Isolation: If Either VCC is at GND, Both Ports are in the High-Impedance State.
No Power-Supply Sequencing Required: Either VCCA or VCCB can be Ramped First.
IOFF: Supports Partial-Power-Down Mode Operation.
Extended Temperature: -40°C to +85°C 2.
